Vertiv Liebert APM2 300-600kVA modular UPS

The brand new Liebert ®  APM2 is a high power density high-frequency modular UPS that utilizes innovative SiC devices, bringing extraordinary features to critical infrastructure applications. It ensures an extraordinary dual conversion efficiency of up to 97.5%, significantly saving infrastructure operating costs, reducing total cost of ownership (TCO), and environmental impact. Liebert ®  The APM2 power range is from 60-600kVA, and different capacity racks can be selected according to different needs. The built-in 60kVA scalable power module also allows for the use of the unique FlexPower technology ™ Hot swapping technology allows for quick and simple increase in system capacity. The Liebert EXL S1 is also equipped with a 9-inch color Chinese and English touch screen, which is clear, flexible, and convenient for users to query and operate the device, as well as remotely manage device information through platforms such as Viti Trellis. It also has operation instructions, and when performing operations that may cause power outages, there will be operation prompts to prevent misoperation. The third-party power environment monitoring system is also compatible with users through communication protocols. At present, the Liebert EXL S1 series UPS can easily be compatible with Viti HPL and other third-party lithium battery solutions. Weidi Technology adheres to the development concept of "uncompromising reliability" for power supply and distribution products. Advanced research and development technology and strict product quality system create excellent product quality. APM2 selects high-quality and long-life AC/DC capacitors, and the capacitors do not need to be replaced throughout the entire life cycle of UPS; The power module adopts an independent air duct design internally, and the cooling air duct is isolated from the power device to prevent the risk of arcing caused by dust accumulation; Apply the three proof paint on the circuit board, glue key components, focus on small areas, and strive for excellence.

Advantage

High power density, low footprint, and increased data center cabinet output rate

The output power factor is as high as 1.0, and the same capacity UPS can carry more loads

Innovative circuit topology design and SiC devices significantly reduce user operating costs

Flexible scalability and convenient maintenance

Low Total Cost of Ownership (TCO)

Fully compatible with various basic supporting equipment such as generators and lithium batteries

Matching the vast majority of mainstream load types currently available: IT loads, power loads, etc

Characteristic

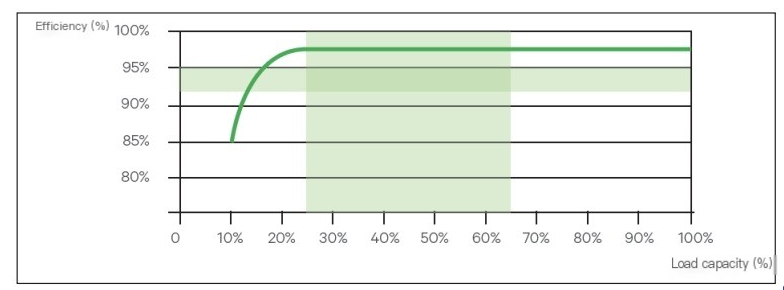

Efficient and energy-saving, with an efficiency of up to 97.5%

Dynamic online mode with an efficiency of up to 99%, input power factor&gt0.99

The output power factor is 1, with no derating from 0.5 lagging to 0.5 leading

Ultra high power density, 600kVA host occupies only 0.6m2, industry preferred

Compatible with various energy storage solutions such as lead-acid and lithium batteries, supporting full communication solutions for lithium batteries, and adopting a battery neutral design

Continuous operation at 40 ℃ without derating, capable of outputting 80% of rated power even in an ambient temperature of 50 ℃

Adopting strict screening of AC/DC capacitors, special heat dissipation and ripple control design, with a full load operation life of 15 years

Industrial grade internal design: independent air duct, fully coated with PCB three proof paint and enhanced protection with insulation glue, dust-proof and corrosion-resistant

More efficient and lower TCO

Significantly energy-efficient UPS design

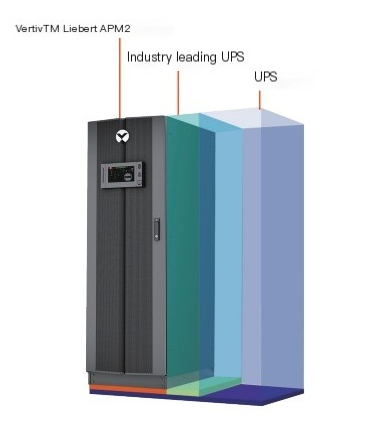

Liebert ®  APM2 UPS provides 3U 50/60kW ultra-high power density power modules, and the 600kW model occupies an area as low as 0.6m2. Compared to the industry average, it is expected to save 20-50% of land area. The saved space can be further used to place IT equipment.
